솔리톤 분포
Soliton Distribution
Ideal Soliton Distribution
Definition
$\rho(1) = 1/k$ | |
$\rho(i)=1/i(i − 1),$ | $(i = 2,…,k)$ |
위 정의에 의해 $k\geq 1,\thinspace i\in\mathbb{N}$ 일 때, Probability Distribution의 조건 $\sum_i\rho(i)=1$ 을 만족한다. 따라서 별도의 normalization은 필요 없지만, 코드로 구현해보면 자료형의 정밀도 한계에 의해 누적합이 1의 근사치로 나타나기도 한다.

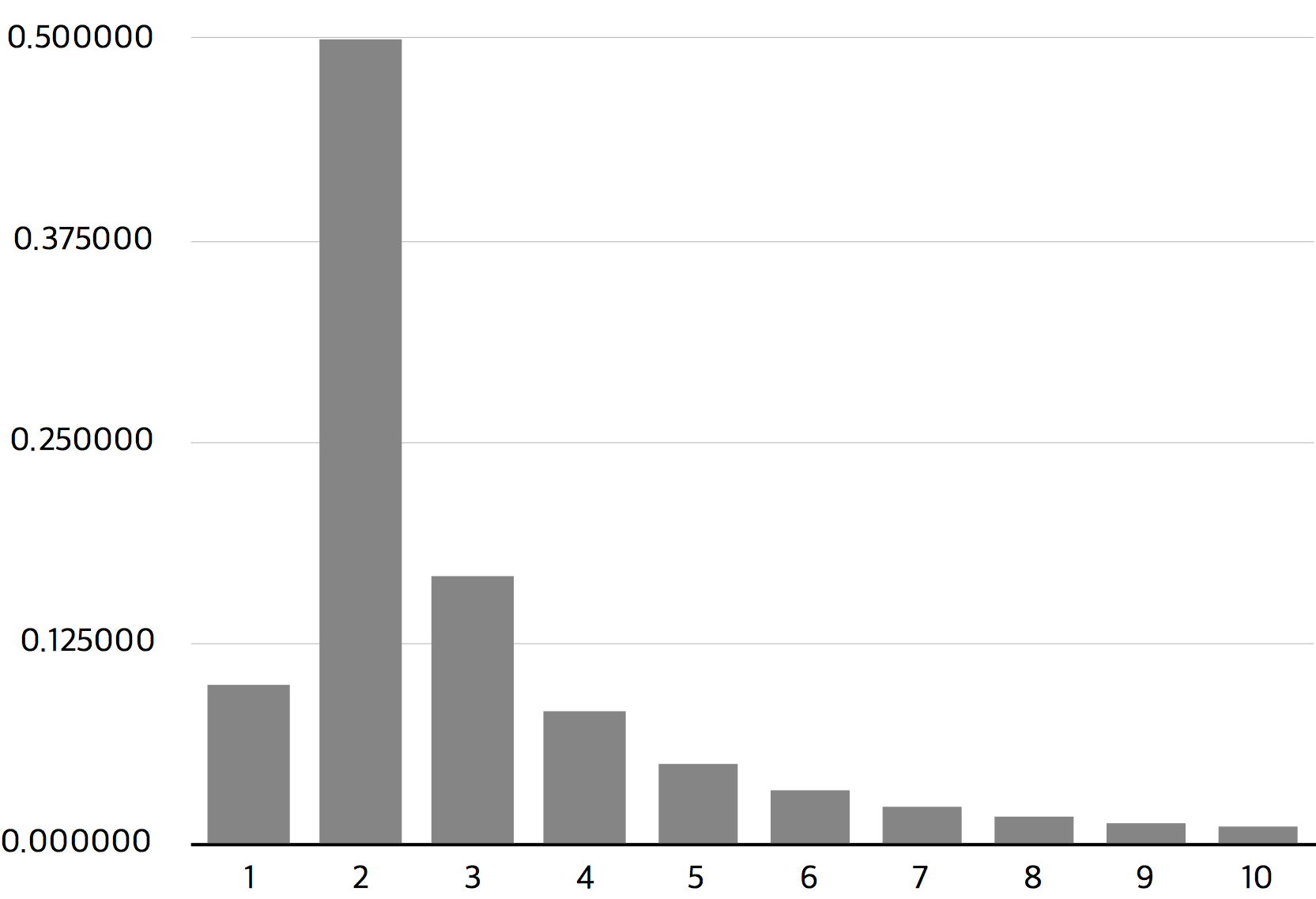

Graph
$$k = 10$$
Reference
Math Symbols
$P$ | $\rho$ | rho |
$T$ | $\tau$ | tau |
$M$ | $\mu$ | mu |
$D$ | $\delta$ | delta |
Robust Soliton Distribution
Definition
$\tau(i)= 1/im,$ | $(i=1,2,\dots,m-1)$ |
CDF
gofountain하다 보면 솔리톤분포 생성함수를 CDF(Cumulative Distribution Function, 누적분포함수)라고 지칭하고 있는데 PDF와의 차이점을 공부하다가 정리해본다. 우선 용어에서 혼란이 있었는데 정리하자면 하기와 같다.
Probability Distribution Function | Probability Mass Function | Discrete variable |
Probability Density Function | Continuous variable | |
Cumulative Distribution Function | PMF의 누적합 또는 PDF의 적분 |
먼저 CDF의 정의를 찾아보자. A real-valued random variable X 대한 함수의 정의는, $$F(x) = P(X\leq x)$$ 이 때, P는 임의의 실수 X가 x보다 작거나 같을 확률이다. Continuous random variables 에서는 PDF(Probability Density Function)에 대한 적분이고, $$F(x)=\int_{-\infty}^x f(t)dt$$ Discrete random variables 에서는 PMF(Probability Mass Function)에 대한 누적합이다. $$F(x)=\sum\limits_{t \leq x} f(t)$$
Golang
Reference
package main import( "fmt" ) func SolitonDistribution(n int) []float64 { cdf := make([]float64, n+1) cdf[1] = 1 / float64(n) for i := 2; i < len(cdf); i++ { cdf[i] = cdf[i-1] + (1 / (float64(i) * float64(i-1))) } return cdf } func main() { for i:=1;i<20;i++{ fmt.Println(SolitonDistribution(i)) } }
MacBook-Pro-Retina:gofountain-LT-experiment gomida$ go run soliton.go [0 1] [0 0.5 1] [0 0.3333333333333333 0.8333333333333333 0.9999999999999999] [0 0.25 0.75 0.9166666666666666 1] [0 0.2 0.7 0.8666666666666666 0.95 1] [0 0.16666666666666666 0.6666666666666666 0.8333333333333333 0.9166666666666666 0.9666666666666667 1] [0 0.14285714285714285 0.6428571428571428 0.8095238095238094 0.8928571428571428 0.9428571428571428 0.9761904761904762 1] [0 0.125 0.625 0.7916666666666666 0.875 0.925 0.9583333333333334 0.9821428571428572 1] [0 0.1111111111111111 0.6111111111111112 0.7777777777777778 0.8611111111111112 0.9111111111111112 0.9444444444444445 0.9682539682539684 0.9861111111111113 1.0000000000000002] [0 0.1 0.6 0.7666666666666666 0.85 0.9 0.9333333333333333 0.9571428571428572 0.9750000000000001 0.9888888888888889 1] [0 0.09090909090909091 0.5909090909090909 0.7575757575757576 0.8409090909090909 0.890909090909091 0.9242424242424243 0.9480519480519481 0.965909090909091 0.9797979797979799 0.990909090909091 1] [0 0.08333333333333333 0.5833333333333334 0.75 0.8333333333333334 0.8833333333333334 0.9166666666666667 0.9404761904761906 0.9583333333333335 0.9722222222222223 0.9833333333333334 0.9924242424242424 1] [0 0.07692307692307693 0.5769230769230769 0.7435897435897435 0.8269230769230769 0.8769230769230769 0.9102564102564102 0.9340659340659341 0.951923076923077 0.9658119658119658 0.9769230769230769 0.9860139860139859 0.9935897435897435 0.9999999999999999] [0 0.07142857142857142 0.5714285714285714 0.738095238095238 0.8214285714285714 0.8714285714285714 0.9047619047619048 0.9285714285714286 0.9464285714285715 0.9603174603174603 0.9714285714285714 0.9805194805194805 0.988095238095238 0.9945054945054944 0.9999999999999999] [0 0.06666666666666667 0.5666666666666667 0.7333333333333333 0.8166666666666667 0.8666666666666667 0.9 0.9238095238095239 0.9416666666666668 0.9555555555555556 0.9666666666666667 0.9757575757575757 0.9833333333333333 0.9897435897435897 0.9952380952380951 0.9999999999999999] [0 0.0625 0.5625 0.7291666666666666 0.8125 0.8625 0.8958333333333334 0.9196428571428572 0.9375000000000001 0.951388888888889 0.9625 0.9715909090909091 0.9791666666666666 0.985576923076923 0.9910714285714285 0.9958333333333332 0.9999999999999999] [0 0.058823529411764705 0.5588235294117647 0.7254901960784313 0.8088235294117647 0.8588235294117648 0.8921568627450981 0.9159663865546219 0.9338235294117648 0.9477124183006537 0.9588235294117647 0.9679144385026738 0.9754901960784313 0.9819004524886877 0.9873949579831932 0.992156862745098 0.9963235294117646 0.9999999999999999] [0 0.05555555555555555 0.5555555555555556 0.7222222222222222 0.8055555555555556 0.8555555555555556 0.888888888888889 0.9126984126984128 0.9305555555555557 0.9444444444444445 0.9555555555555556 0.9646464646464646 0.9722222222222222 0.9786324786324786 0.9841269841269841 0.9888888888888888 0.9930555555555555 0.9967320261437908 0.9999999999999999] [0 0.05263157894736842 0.5526315789473684 0.719298245614035 0.8026315789473684 0.8526315789473684 0.8859649122807017 0.9097744360902256 0.9276315789473685 0.9415204678362573 0.9526315789473684 0.9617224880382774 0.969298245614035 0.9757085020242914 0.9812030075187969 0.9859649122807016 0.9901315789473683 0.9938080495356035 0.9970760233918127 0.9999999999999998] MacBook-Pro-Retina:gofountain-LT-experiment gomida$
각 라인의 마지막 값을 살펴보면 누적 합이 1이 아닌 경우들을 관찰 할 수 있다.
Python
Reference
from __future__ import print_function, division import random from math import ceil def soliton(N, seed): prng = random.Random() prng.seed(seed) while 1: x = random.random() # Uniform values in [0, 1) i = int(ceil(1/x)) # Modified soliton distribution yield i if i <= N else 1 # Correct extreme values to 1 if __name__ == '__main__': N = 10 T = 10 ** 5 # Number of trials s = soliton(N, random.randint(0, 2 ** 32 - 1)) f = [0]*N for j in range(T): i = next(s) f[i-1] += 1 print("k\tFreq.\tExpected Prob\tObserved Prob\n"); print("{:d}\t{:d}\t{:f}\t{:f}".format(1, f[0], 1/N, f[0]/T)) for k in range(2, N+1): print("{:d}\t{:d}\t{:f}\t{:f}".format(k, f[k-1], 1/(k*(k-1)), f[k-1]/T))
MacBook-Pro-Retina:work gomida$ python soliton.py k Freq. Expected Prob Observed Prob 1 10148 0.100000 0.101480 2 49794 0.500000 0.497940 3 16661 0.166667 0.166610 4 8335 0.083333 0.083350 5 5031 0.050000 0.050310 6 3306 0.033333 0.033060 7 2469 0.023810 0.024690 8 1771 0.017857 0.017710 9 1419 0.013889 0.014190 10 1066 0.011111 0.010660 MacBook-Pro-Retina:work gomida$
